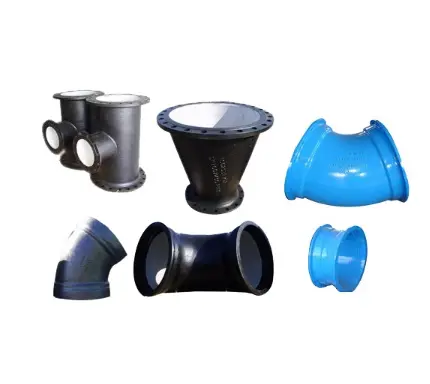

Ductile Iron Cast Iron fittings-ductile iron flange,ductile iron reducer,ductile iron elbow

Detailed Description

1	Type:	Tyton (push on) Socket Pipe Fitting
		Flanged Pipe Fitting
		K type Bolted Gland Pipe Fitting
		Mechanical Joint Pipe Fitting
		Ductile Iron Pipe Fitting for PVC Pipe
2	Standard:	ISO2531, EN545, EN598, BS4772, EN12842, AWWA C110, AWWA C153, etc
3	Size:	DN80~2600mm
4	Pressure:	PN10, PN16, PN25, PN40
5	Application:	Water supply project, drainage, sewage, irrigation, water pipeline.
6	Certificate:	ISO9001, BV, WRAS, BSI
7	Internal Coating:	a). Portland cement mortar lining
		b). Sulphate Resistant cement mortar lining
		c). High-Aluminum cement mortar lining
		d). Fusion bonded epoxy coating
		e). Liquid epoxy painting
		f). Black bitumen painting
8	External Coating:	a). Zinc + bitumen painting
		b). Fusion bonded epoxy coating
		c). Zinc-aluminum alloy + liquid epoxy painting
9	Accessories:	Rubber rings & Gaskets : SBR or EPDMBolts & Nuts : Galvanized carbon steel G4.8/G8.8, or SS304/SS316
10	Packing:	Wooden case/pallet with plastic layer, or as per customer's requirements.
